Pantalla LED de malla para exteriores

Outdoor transparent grid screen for see-through display applications.

Peso

15kg/㎡
Brightness

≥4500CD
Cabinet size

1000x500x80mm

Consulta

Descargar Hoja

Light

IP65

Freely Assembly

Energy

All-weather

Outdoor mesh screen installation on the building glass

Good light transmittance

Less wind resistance and safer

IP65 waterproof, no fear of weather changes

Resistencia a altas y bajas temperaturas.

15° angle-cut arc lock cabinet combination method

The lock can be adjusted according to the scale achieve -15° internal/external arc of adjacent cabinets.

CNC precision machining cabinet

Super slim cabinet

Tabla de especificaciones

Modelo
Paso de píxeles
Transparencia
Densidad de píxeles
Scanning method
Frecuencia de actualización
Brightness
LED Specifcation
Maximum viewing angle
LED lamp life
Maintenance
Protection grade
Cabinet size
Peso
Input Power(Max/Ave)
Input voltage

CHEER-OM3.9×7.8
H:3.9milímetros; V:7.8milímetros
53%
32768 puntos/m2
1/8
5120-7000Hz
>=4500CD
SMD1921
140°/140°
>=100000hours
Front / Rear
IP65
1000x500x80mm
15kg/m2
800/240/m2
AC100-240V 50/60Hz

CHEER-OM5.2×10.4
H:5.2milímetros; V:10.4milímetros
65%
18432 puntos/m2
1/4
3840Hz
>=4500CD
SMD1921
140°/140°
>=100000hours
Front / Rear
IP65
1000x500x80mm
15kg/m2
800/240/m2
AC100-240V 50/60Hz

CHEER-OM10.4×10.4
H:10.4milímetros; V:10.4milímetros
65%
9216 puntos/m2
1/2
3840Hz
>=4500CD
SMD2727
140°/140°
>=100000hours
Front / Rear
IP65
1000x500x80mm
15kg/m2
800/240/m2
AC100-240V 50/60Hz

CHEER-OM15.6×15.6
H:15.6milímetros; V:15.6milímetros
65%
4096 puntos/m2
Static
5120-7000Hz
>=4500CD
SMD2727
140°/140°
>=100000hours
Front / Rear
IP65
1000x500x80mm
15kg/m2
800/240/m2
AC100-240V 50/60Hz

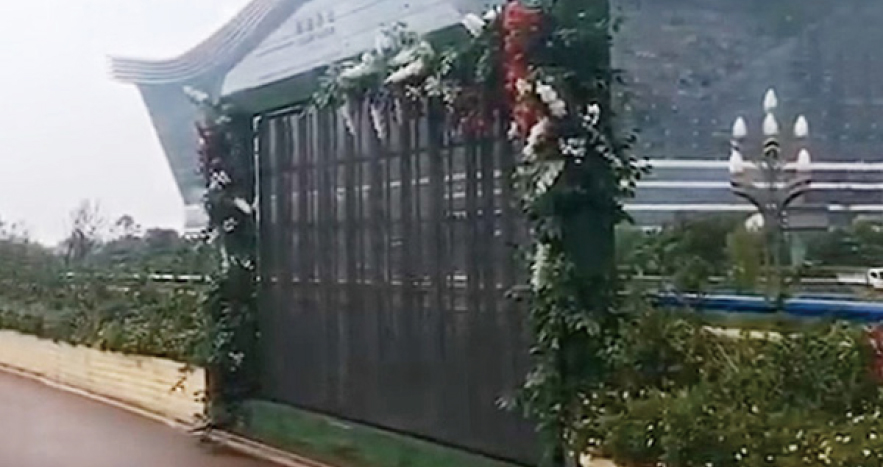

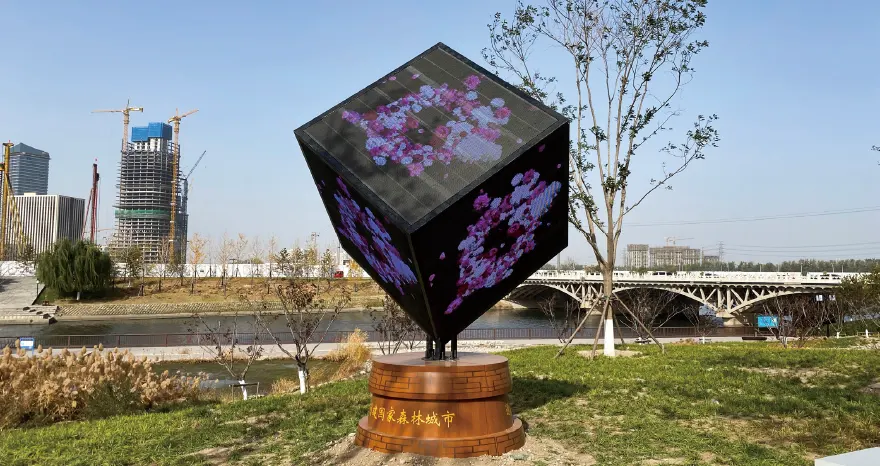

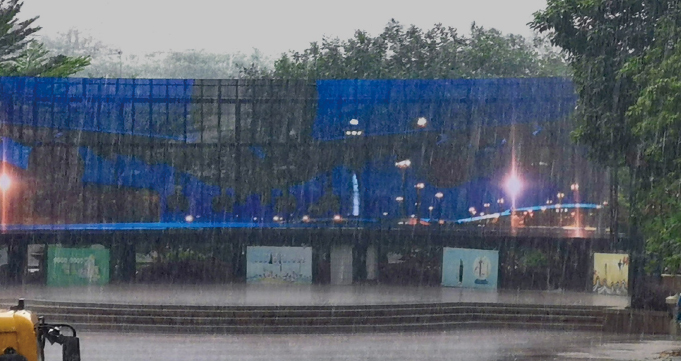

Escenarios de aplicación

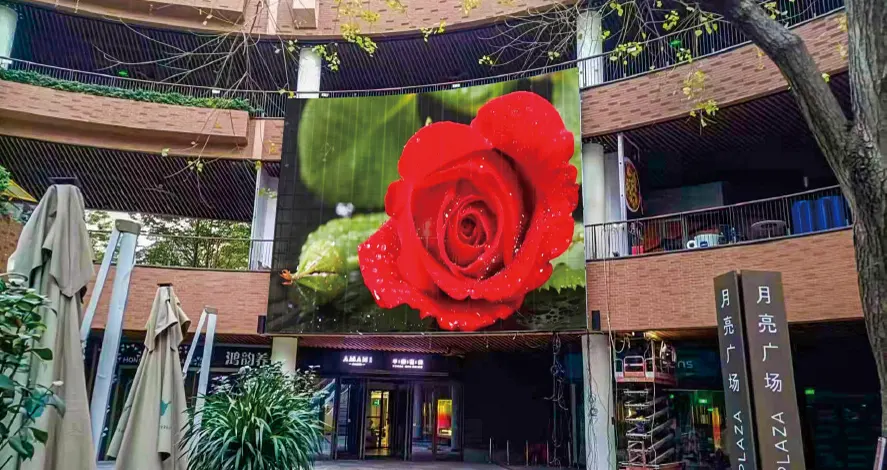

Outdoor mall center

Outdoor billboard
