Al coperto&Display LED a noleggio per esterni

Indoor and outdoor die-cast aluminum rental display screen with enhanced durability.

Passo pixel(mm)

2.6 | 2.8 | 3.9 | 2.8
Refesh Rate

≥3840Hz
Ingress Protection

IP43

Inchiesta

Scarica Foglio

Anti-Collision Comer

Quick maintenance

3 Seconds Fast Installation

3840Hz

Arc Lock

Robusta struttura in metallo abbinata ad un facile montaggio

Creative Slicing

-5,-2.5,+2.5,+5 corner splicing available, easily reach curved splicing.

Technical Parameters of Pixel Pitch

This LED display has two panel sizes for option, with pixel picthes from 1.9mm to 4.8mm, which can meet any demands with various stage display.

Front and Rear Maintenance

Modular design effectively improves the mainance efficiency, saves the maintenance time and cost.

Installation Method

Fast locks design, reach fast assembly and disassembly.

Tabella delle specifiche

Modello
Passo pixel
Briglitness
Densità dei pixel
Dimensioni del modulo(WxH)
Panel Size
Panel Resolution
Panel Weight
Ingress Protection
Cuive(Convex Concave)
ViewingAngle(HV)
ContrastRate
Input Power/Panel(Massimo)
Input Power/Panel(Ave)
Refesh Rate
Tensione in ingresso
Standard
Mounting Confguration

CHEER-RS2.6
2.6mm
700cd/m2
147456 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
192x192/384 dots
7.2kg/13.2kg
IP43
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
5000:1
480pollici/m2
280pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

CHEER-RS2.8
2.8mm
700cd/m2
123904 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
176x176/352 dots
7.2kg/13.2kg
IP43
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
5000:1
480pollici/m2
280pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

CHEER-RS3.9
3.9mm
700cd/m2
65536 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
128x128/256 dots
7.2kg/13.2kg
IP43
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
5000:1
480pollici/m2
280pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

Modello
Passo pixel
Briglitness
Densità dei pixel
Dimensioni del modulo(WxH)
Panel Size
Panel Resolution
Panel Weight
Ingress Protection
Cuive(Convex Concave)
ViewingAngle(HV)
ContrastRate
Input Power/Panel(Massimo)
Input Power/Panel(Ave)
Refesh Rate
Tensione in ingresso
Standard
Mounting Confguration

CHEER-RS2.8
2.8mm
4500cd/m2
123904 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
176x176/352 dots
7.5kg/13.5kg
IP65
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
3000:1
560pollici/m2
320pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

CHEER-RS3.4
3.4mm
4500cd/m2
82944 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
144x144/288 dots
7.5kg/13.5kg
IP65
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
3000:1
560pollici/m2
320pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

CHEER-RS3.9
3.9mm
4500cd/m2
65536 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
128x128/256 dots
7.5kg/13.5kg
IP65
-5°, -2.5°, 0°, +2.5°, +5°
140°/120°
3000:1
560pollici/m2
320pollici/m2
3840Hz
CA 100-240 V 50-60 Hz
Hanging/Stacking

CHEER-RS4.8
4.8mm
43264 dots/m2
250x250mm
500x500x84mm/500x1000x84mm
104x104/208dots
7.5kg/13.5kg
Â IP65
-5°, -2.5°, 0°, +2.5°, +5°
3000:1
560pollici/m2
320pollici/m2
3840Hz
CA 100-240 V 50-60 Hz

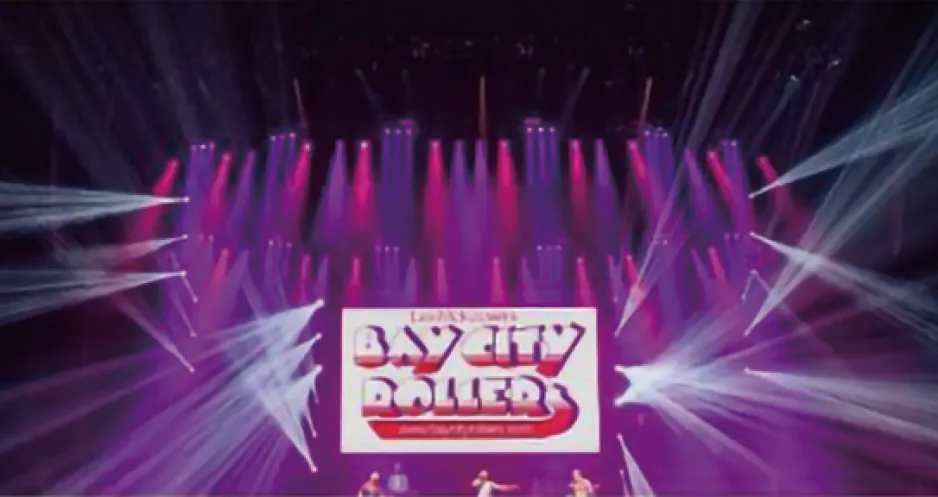

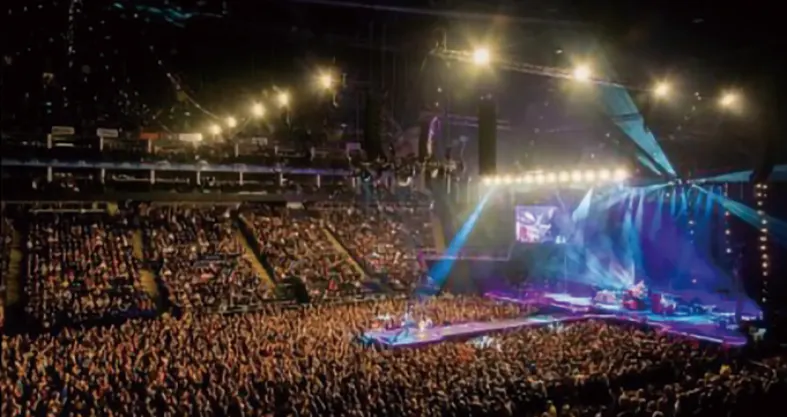

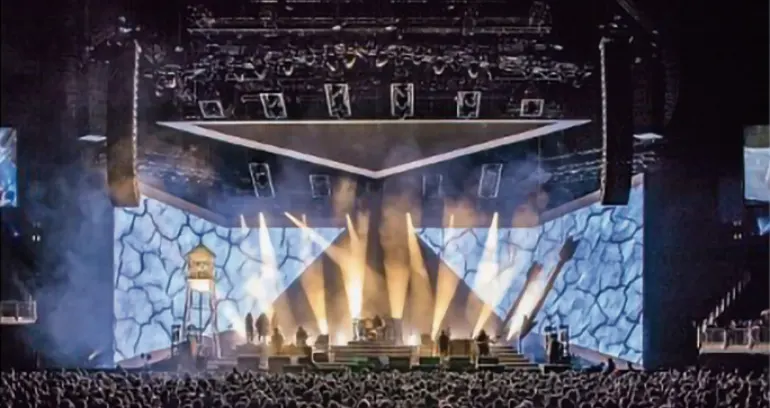

Scenari applicativi

Outdoor concert

Inizia il tuo progetto

Ti risponderemo entro 24 ore dopo aver ricevuto l'e-mail di richiesta.

CE, Certificazione Rosh approvata
Remote & On-site Technical Instructions
110+ Paesi Soluzioni di visualizzazione su schermi LED
2 Year Warranty & Free Spare Parts
