Al coperto&Noleggio per esterni Display LED-Pro

Upgraded version of the indoor and outdoor die-cast aluminum rental display screen for improved performance.

Passo pixel(mm)

2.6 | 2.976 | 3.91
Refresh Frequency

≥3840Hz
LED Lamp

SMD1515

Inchiesta

Scarica Foglio

Alimentazione elettrica

Independent Power

High Flatness

≥3840Hz

Arc Lock

Cheer New Version Rental Cabinet Pro! Really Anti-collision and Support splicing

The latest anti-collision technology with higher anti-collision torque and impact resistance coefficient.

Using PCB anti-collision welding board with Enlarged solder pads.

Can be spliced into irregular shapes.

Cabinet of 500*500 and 500*1000 can be mutually spliced, and can also be staggered for various creative displays.

Integrated modular design

Arc lock design

Supports horizontal and vertical 160° viewing, achieving a wrap-around curved splicing experience.

Tabella delle specifiche

Modello
Passo pixel
Dimensioni del modulo
Risoluzione del modulo
Panel Size
Panpel Weight
Pixel Points/m2
Panel Resolution
LED Lamp
Scansione
Refresh Frequency
Potenza media
Consumo energetico massimo
White balanced brightness

CHEER-RP2.6
2.6mm
250x250mm
96×96 dots
500x500mm/500x1000mm
500×500=6.5kg/500×1000=12kg
147456
192×192/192×384
SMD1515
1/32
>=3840Hz
300W/m2
800W/m2
800-1000cd/m2

CHEER-RP2.976
2.976mm
250x250mm
84×84 dots
500x500mm/500x1000mm
500×500=6.5kg/500×1000=12kg
112896
168×168/168×336
SMD1515
1/28
>=3840Hz
300W/m2
800W/m2
900-1200cd/m2

CHEER-RP3.91
3.91mm
250x250mm
64×64 dots
500x500mm/500x1000mm
500×500=6.5kg/500×1000=12kg
65536
128×128/128×256
SMD1515
1/16
>=3840Hz
300W/m2
800W/m2
900-1200cd/m2

Modello
Pitch
Dimensioni del modulo
Risoluzione del modulo
Panel Size
Panpel Weight
Pixel Points/m2
Panel Resolution
LED Lamp
Scansione
Refresh Frequency
Potenza media
Consumo energetico massimo
White balanced brightness

CHEER-RP2.976
2.976mm
250x250mm
84×84 dots
500x500mm/500x1000mm
500×500=6.5kg/500×1000=12kg
112896
168×168/168×336
SMD1515
1/21
>=3840Hz
350W/m2
800W/m2
4000-4500cd/m2

CHEER-RP3.91
3.91mm
250x250mm
64×64 dot
500x500mm/500x1000mm
500×500=6.5kg/500×1000=12kg
65536
128×128/128×256
SMD1515
1/16
>=3840Hz
300W/m2
800W/m2
4000-4500cd/m2

Scenari applicativi

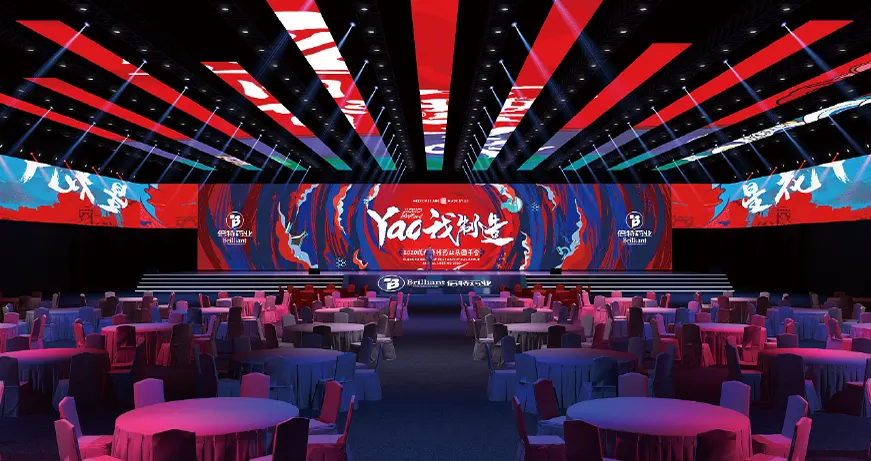

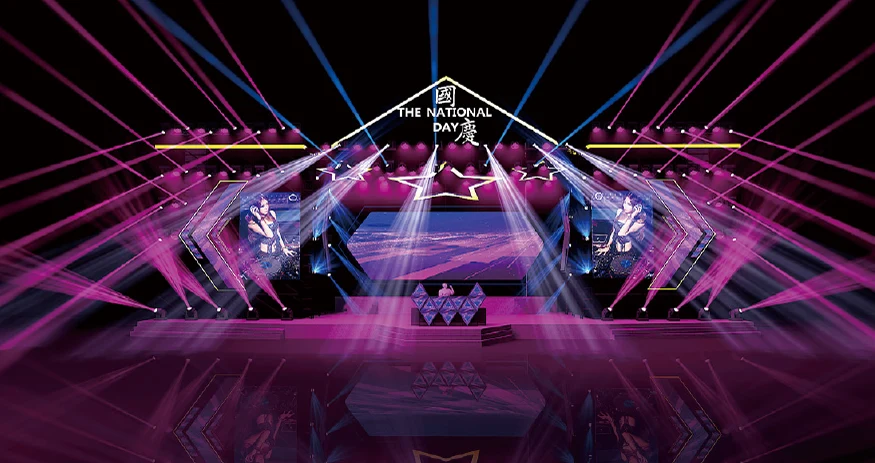

Indoor Exhibitors

Indoor Exhibitors

Indoor Exhibitors

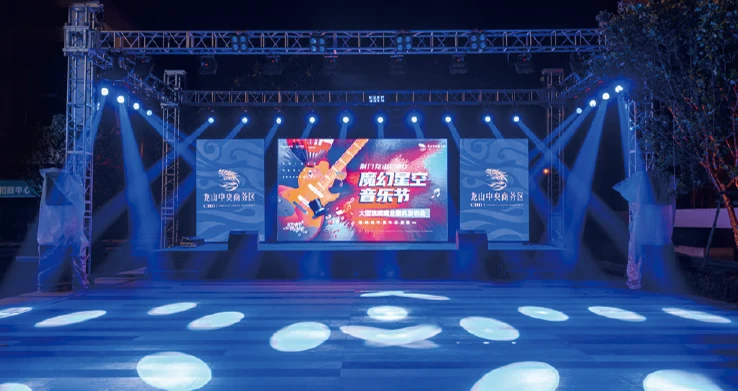

Outdoor Exhibitors

Inizia il tuo progetto

Ti risponderemo entro 24 ore dopo aver ricevuto l'e-mail di richiesta.

CE, Certificazione Rosh approvata
Remote & On-site Technical Instructions
110+ Paesi Soluzioni di visualizzazione su schermi LED
2 Year Warranty & Free Spare Parts
